Used 100 gallon vertical stainless steel mixing tank with agitator

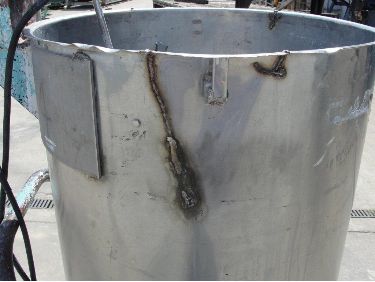

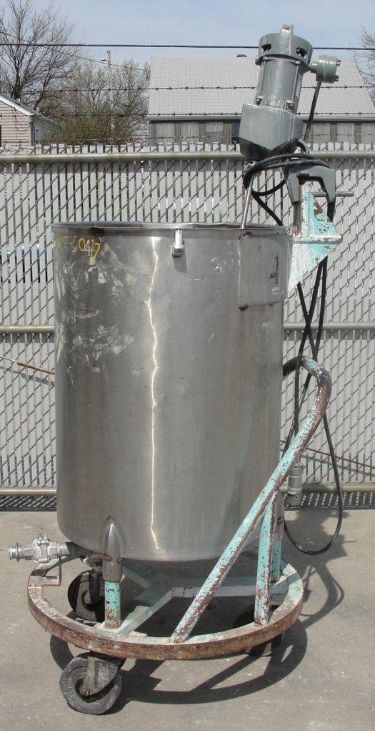

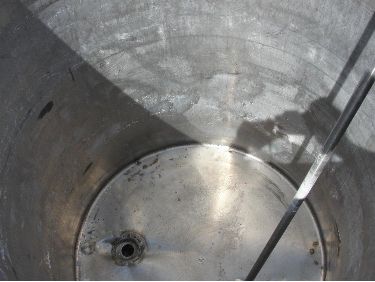

Used-100 gallon stainless steel vertical tank. Tank dimensions are 28.75" diameter x 38.5" straight side height with flat bottom. Tank has an open top. The tank has a 1/3 hp clamp on agitator with a 41" long x 1/2" diameter shaft and a 3 blade 4" prop. The unit is on a carbon steel frame with three casters. The tank has a 21" clearance from discharge to ground. There is a 2" center discharge with ball valve. The overall height of unit with agitator and stand is 84". Requires 230 vac 3 ph electrical supply. (agitator motor is tagged for hazardous conditions.) Unit has welded repairs.
|
