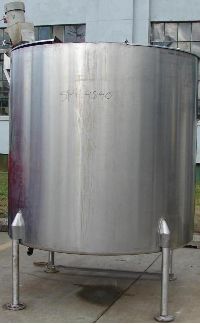

Used Perma-San 700 gallon stainless steel jacketd mixing tank with agitator

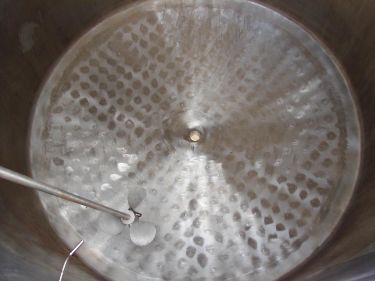

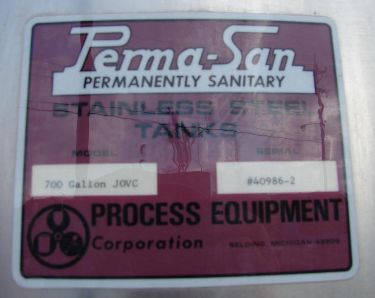

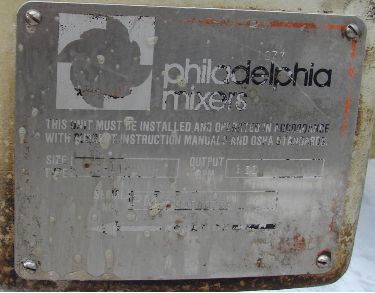

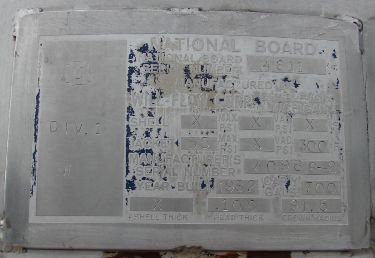

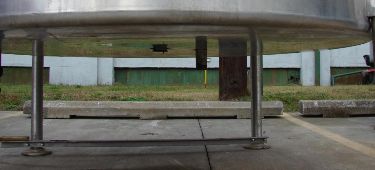

Used Perma-San 700 gallon, stainless steel, jacketed tank with clamp on agitator. Serial # 40986-2. National Board # 4611. Tank has interior dimensions of 60" diameter with 54" straight side height and 6" dished bottom. The overall exterior dimensions with legs are 63" diameter x 83" high. The dimpled jacket is rated for 55 psi @ 300 f and covers the bottom and the lower 36" of the side wall. The jacket has 1.5" threaded connections. The tank has a 2" threaded center discharge. Tank sits on 4 stainless steel legs. Tank is also equipped with thermowell. The 1/4 hp clamp-on agitator has a 48" long x 3/4" diameter shaft with a 3 blade 10" prop. Requires 230/460 vac 3 ph electrical supply.
|
