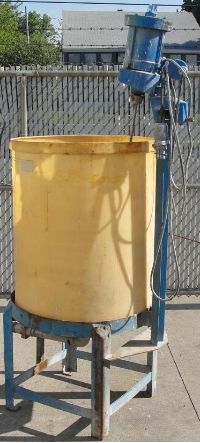

Used 95 gallon vertical dish bottom poly mixing tank with explosion proof motor

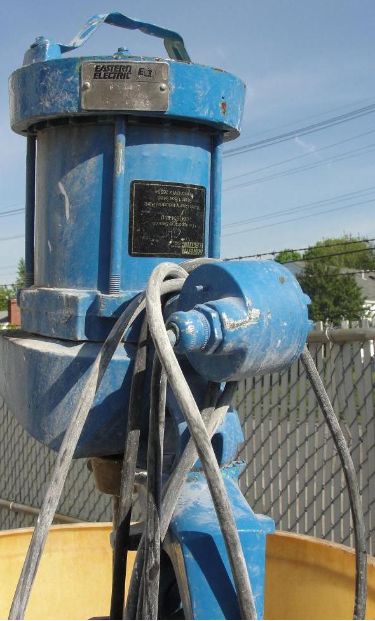

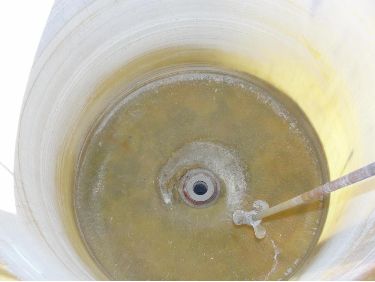

Used 95 gallon polyethylene vertical tank. Tank dimensions are 28" diameter x 33" straight side height with 4" dish bottom. The open top has a polyethylene removable lid. The tank has a 1/3 hp explosion proof clamp on agitator with a 34"long x 1/2" diameter shaft and 3 blade 4" prop. The unit is on a carbon steel frame with 20" of clearance. There is a 2" center discharge with ball valve. The overall height of unit with agitator and stand is 76". Requires 230 vac 3 ph electrical supply. (agitator motor is tagged for hazardous conditions)
|
