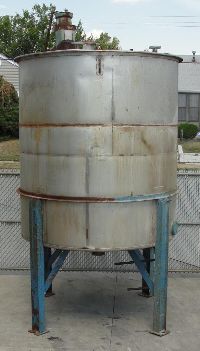

Used Perry 2200 gallon stainless steel open top conical bottom mixing tank with agitator

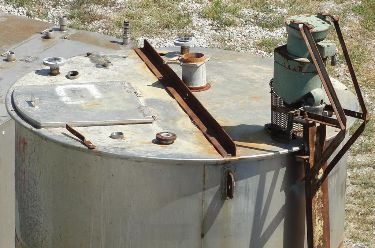

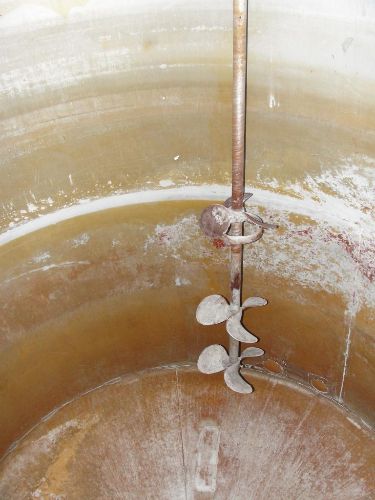

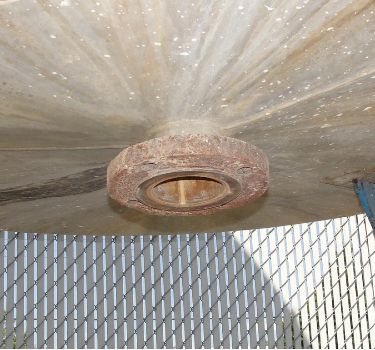

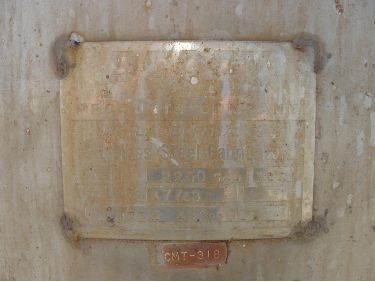

Used Perry 2200 gallon stainless steel vertical tank with conical bottom. Model 2200 gal VCX. The tank has a 1/2 hp clamp on agitator. The agitator has (2) 12" diameter 3 blade and (1) 10" diameter 3 blade props. The tank has a 84" diameter with 93.5" straight side height and 8" conical bottom. The tank has a 3" center discharge. There is also a 4" flanged and a 5" flanged fitting on side near bottom of straight side. The flat top has (3) 2" flanged fitting, (1) 6" infeed pipe and 24" x 24" hinged manway. The overall height with agitator and 4 carbon steel legs is 170". Serial #A7743. The agitator requires 230/460 vac 3 ph electrical supply.
|
