: Used G H Hicks 250 gallon vertical half dimple jacketed open top conical bottom stainless steel tank

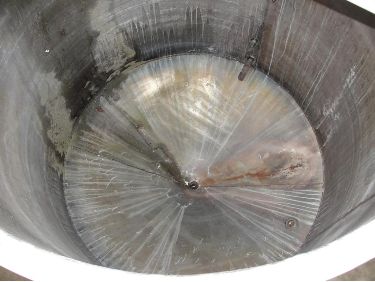

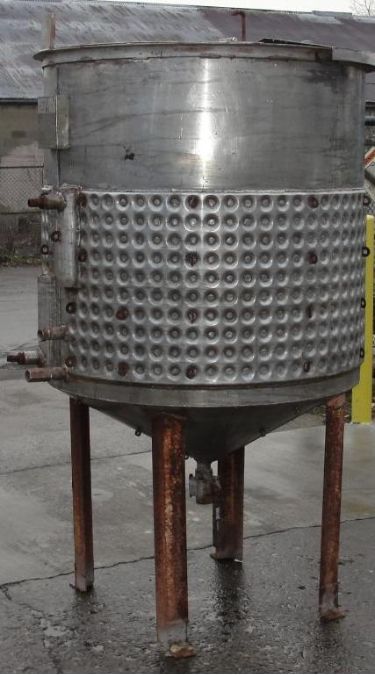

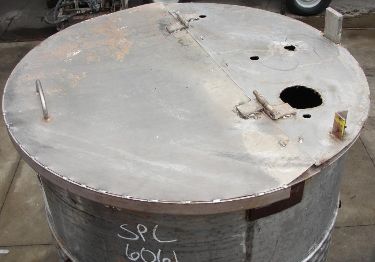

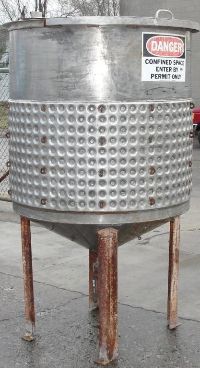

Used G H Hicks & Sons, Inc. 250 gallon vertical half dimple jacketed stainless steel tank. The half jacket is rated for 50 psi @ 300° F. This tank has a half hinged lid top and conical bottom. The diameter is 42", the overall height is 80", the straight side height is 40", and the cone is 12". The side has (2) 1" NPT inlet/outlet for the dimple jacket and (2) 1" NPT. The bottom has a 1.5" center discharge 15" from the ground. Tank sits on 4 carbon steel legs.
