Used 30 gallon 316 stainless steel dish bottom mixing tank with Lightnin agitator

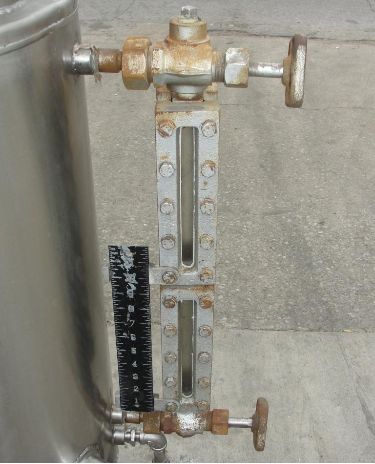

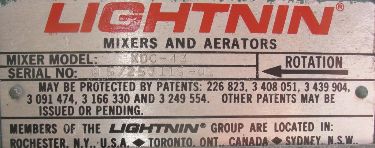

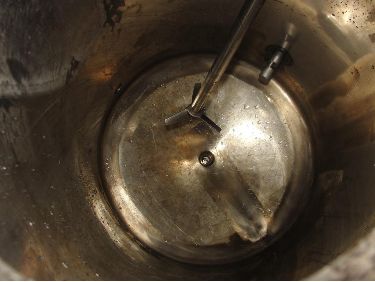

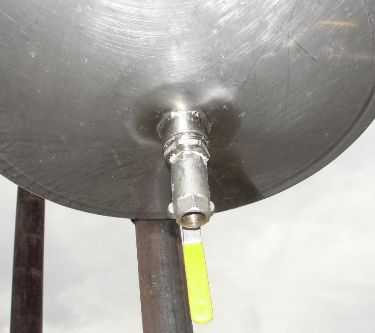

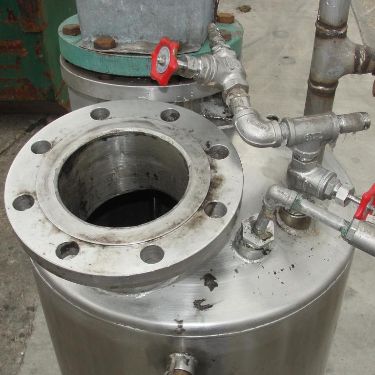

United Utensils Co. 30 gallon 316 stainless steel vertical tank. Tank has an 18" diameter, a 28" straight side height, a 3" dish top, and a 2" cone bottom. The top has (1) 5.5" flange inlet, (4) 1" NPT inlets, and (1) .5" NPT inlet. The side has (7) .75" NPT inlets with (2) of them used with the heavy duty sight glass and (2) with sonic level gauges. The stainless steel tank has a cone bottom with a 1" NPT center discharge that is 14" from the ground. The tank is equipped with a .43 hp 1725 rpm tagged for hazardous locations model XDC-43 Lightnin agitator with a 30" shaft and a 4" diameter 3-blade propeller. Overall dimensions with carbon steel legs and agitator are 40" wide x 40" long x 82" tall. Requires 208-220/440 vac 3 phase electrical supply.
|
