Used 1075 gallon sloped bottom stainless steel tank

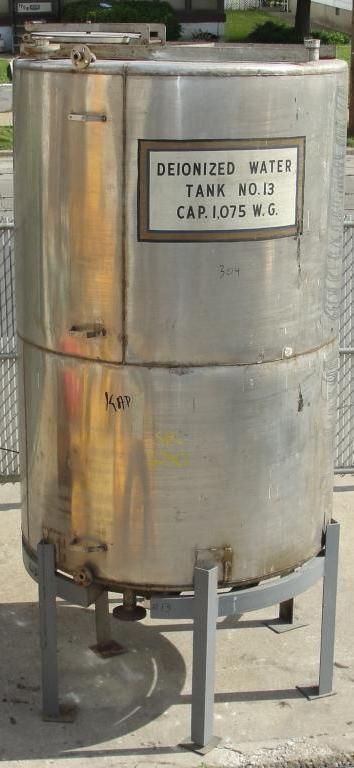

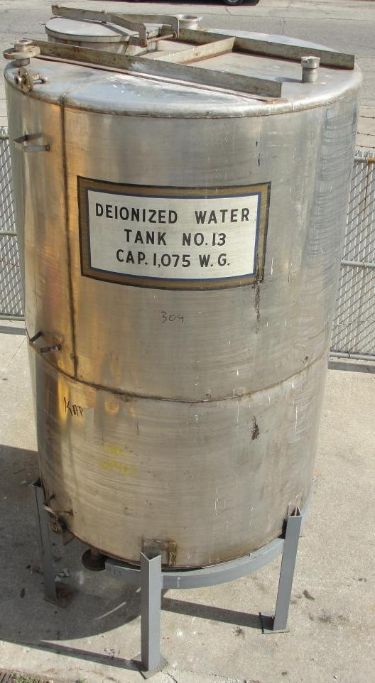

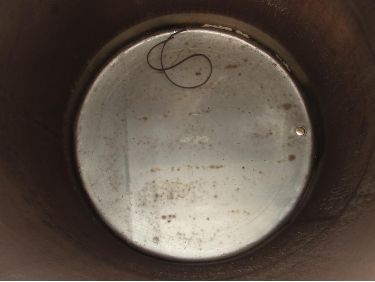

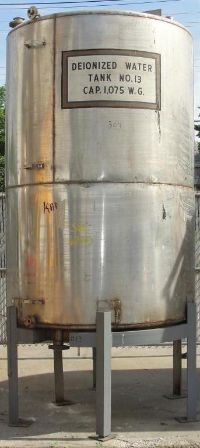

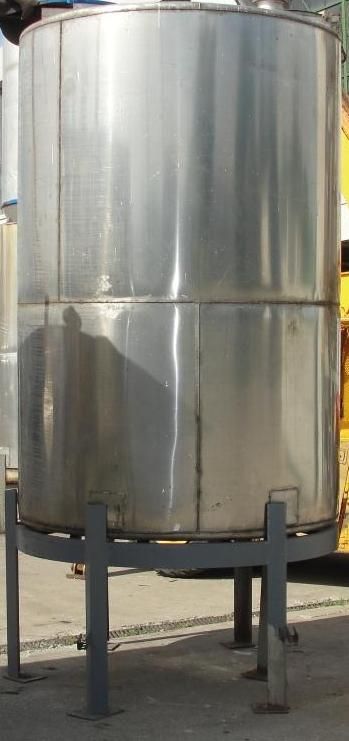

Used 1075 gallon vertical 304 stainless steel tank. This tank has a flat top and a sloped bottom. The tank diameter is 60", the overall height is 130", and the straight side height is 88". The top has a 20” manway, a 4" flange, a 2" flange, a 2" vent, and a 3/4" flange. The side has a 3/4" flange. The bottom has a 2" diameter flanged discharge 24.75" from the ground. The overall dimensions are 64" diameter x 130" tall. Last used for beverage alcohol.
|
