Used 1054 gallon vertical stainless steel tank sloped bottom

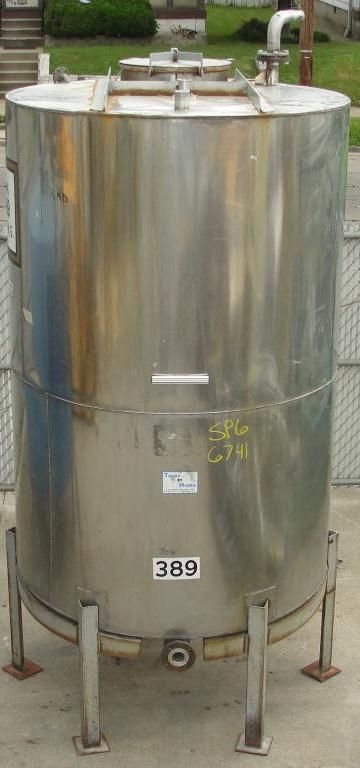

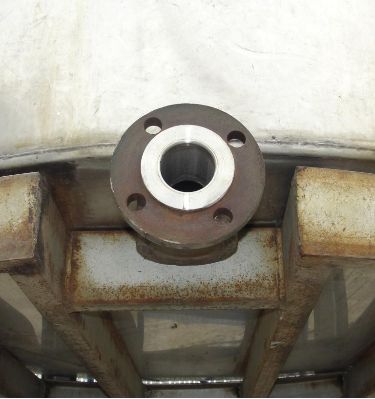

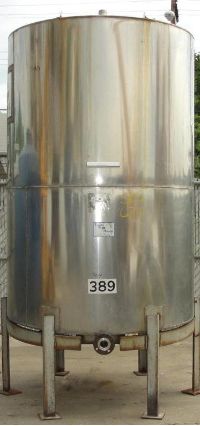

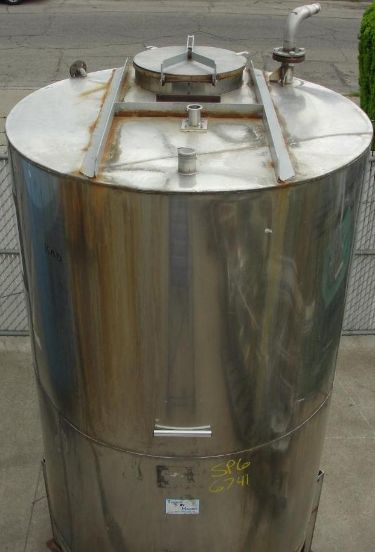

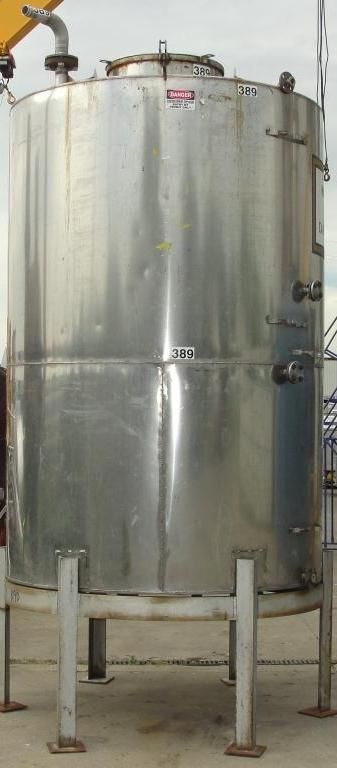

1054 gallon vertical 304 stainless steel tank. This tank has a flat top and a sloped bottom. The tank diameter is 60", the overall height is 130", and the straight side height is 88". The top has a 20” manway, a 2" flange, a 2" Tri-Clamp, a 2" vent, and a 3/4" flange. The side has (3) 3/4" flanges. The bottom has a 2" diameter flanged discharge 23" from the ground. The overall dimensions are 64" diameter x 130" tall. Last used for beverage alcohol.
|
