Used 2050 gallon vertical sloped bottom stainless steel tank

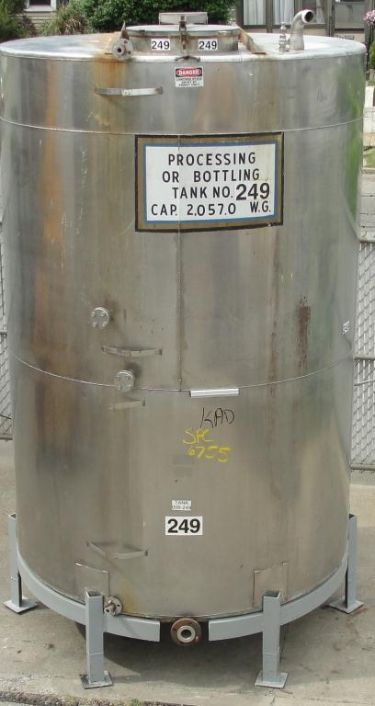

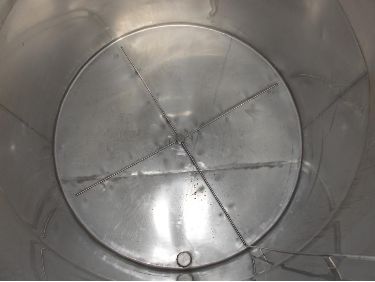

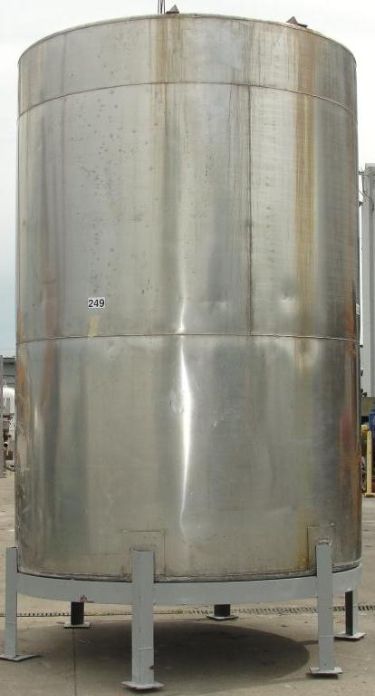

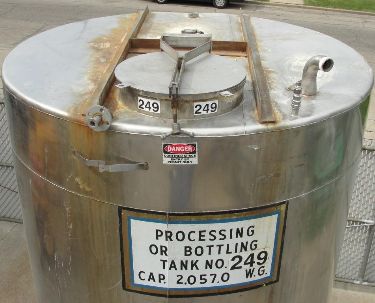

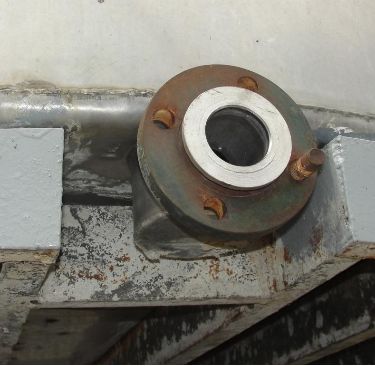

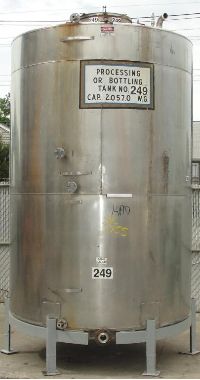

Used 2057 gallon vertical stainless steel tank. This tank has a flat top and a sloped bottom. The tank diameter is 76", the overall height is 140", and the straight side height is 110". The top has a 20” manway, a 3" NPT, a 2" NPT, a 2" Tri-Clamp, a 1/2" NPT, and a 3/4" flange. The side has (3) 3/4" NPT outlets. The bottom has a 2" diameter flanged discharge 15" from the ground. The overall dimensions are 78" diameter x 140" tall. Last used for beverage alcohol.
|
