Used Cherry-Burrell 3500 gallon vertical dish bottom stainless steel tank

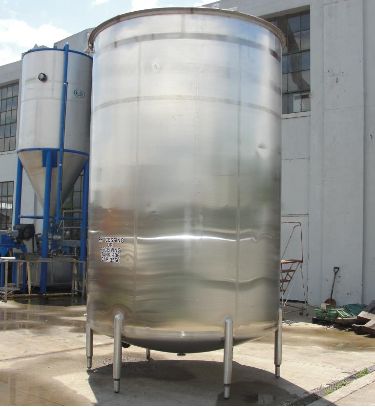

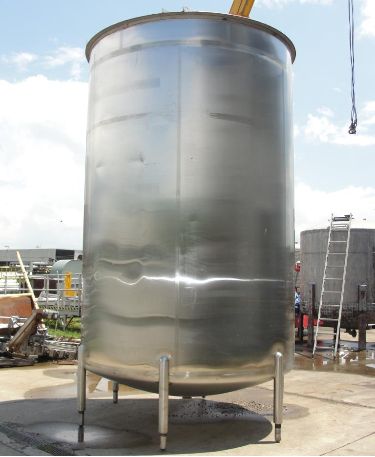

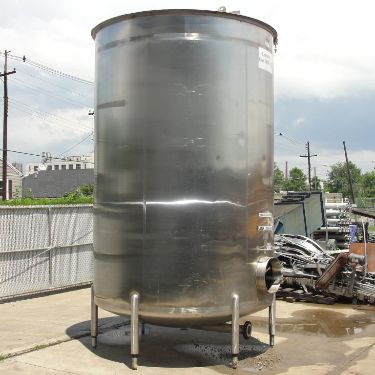

Used Cherry-Burrell 3550 gallon vertical stainless steel tank. This tank has a flat top and a dish bottom. The tank diameter is 90", the overall height is 170", the dish is 16" and the straight side height is 135". The top has a 22" x 22" manway, (3) 3" flange, a 2" flange, a 2" Tri-clamp, and a 1" NPT inlet. The side has (2) 3/4" NPT outlet and a 20" x 16" oval manway. The bottom has a 4" diameter flanged center discharge 12" from the ground. The overall dimensions are 100" diameter x 170" tall. Last used for beverage alcohol.
|
