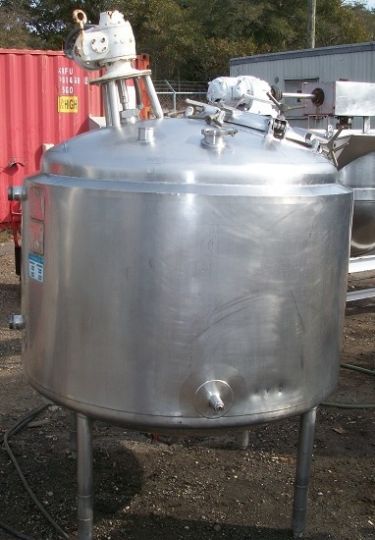

Used Mueller 250 gallon stainless steel jacketed mix tank with sanitary fittings

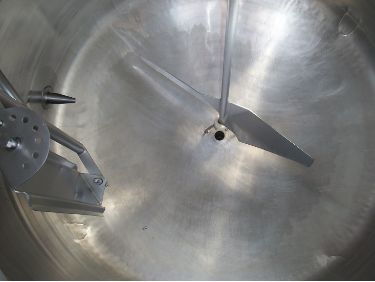

Used Mueller 250 gallon stainless steel jacketed mix tank. 48" diameter X 33" high straight side. Welded dished heads. Internal rated 25 PSI and 5" HG vacuum @ 250 degrees F. Jacket rated 100 PSI @ 400 degrees F. Jacket volume .78 cu. Ft., cooling medium-water, heating medium-steam. S/N 95822, National Board # 378. Equipped with stainless steel paddle agitator, powered by 1/2HP Reliance Motor rated 3/60/230-460 volt. Has removable internal baffle. Top fittings: (2) 1 3/4" sanitary fittings, (2) 2 1/2" sanitary fittings, 18" manway. 1 1/4" sanitary bottom outlet. Mounted on stainless steel legs.

Order Information

Item Number
MTF0514-0004A

Price

Quantity:

All Prices in US Dollars
