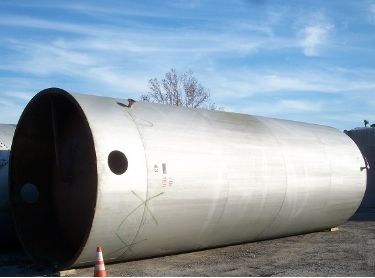

Used 25,000 gallon carbon steel vertical storage tank

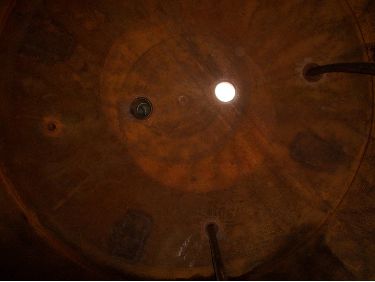

Used Reco 25,000 gallon carbon steel vertical storage tank. 144" diameter X 357 " high straight side. Head thickness .312, Shell thickness .187. Design 20 PSI @ 518 degrees F. National Board # 8253. Dished top and bottom with skirt. Weight 14,540#. Top fittings: (2) 8", one is reduced to 6" with a Protectoseal Model 9806PY spring loaded pressure relief vent, (2) 3", (1) 6', and (1) 2". (1) 2" side top inlet, (1) 3" side bottom outlet, 21" side bottom manway, and (1) 3" center bottom drain, that exits out the side of the skirt (flange needs to be welded back in place)
|
